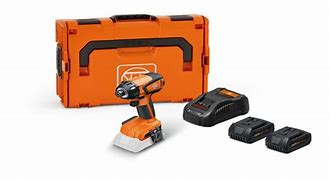

ASCD 18-200 W4 AS

Cordless Impact Driver

Up to max. 1859 in/lbs with brushless motor and 6 torque settings. For universal screw applications including self-drilling screws.

• Extreme precision: the ASCD 18-200 W4 AS with 6 electronic torque settings.
• Brushless FEIN PowerDrive motor with 30% greater efficiency and life.
• 1/4" hexagonal tool mount.
• 10% higher torque in reverse.
• Robust, solid metal impact gearbox.
• Compact design.
• Drives up to 700 11/16" [M18] screws with one battery charge (CORE 18 V 4 Ah).
• Comes with a magnetic bit holder and belt clip.
• Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.
• COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
• State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.
• CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge.
• Perfectly equipped for any job with our L-BOXX system.

Technical data :

• Battery voltage :18 V
• Battery compatibility : Li-ion / CORE 18 V Li-ions
• Battery interface : 18 V AMPShare
• Motor : brushless
• No load speed : 0 - 1 500
• Impacts per minute : 0 - 3 000
• Max. torque : 1859 [210] in/lbs[Nm]
• Torque steps : 6
• Tool mount : 1/4 in Hexagon socket
• Wood screw dia. : 3/8 [8] x 7-7/8 [200] in[mm]
• Weight without battery : 2.65 [1.20] lbs[kg]

• Vibration and sound emission values

• Sound pressure level LpA : 96,1 dB
• Measurement uncertainty of the measured value KpA : 3 dB
• Sound power level LWA : 104,1 dB
• Measurement uncertainty of the measured value KWA : 3 dB
• Peak sound value LpCpeak : 118,1 dB
• Measurement uncertainty of the measured value KpCpeak : 3 dB
• Vibration value 1 αhv 3-way : αh 13,4 m/s²
• Measurement uncertainty of the measured value Kα :1,5 m/s²
